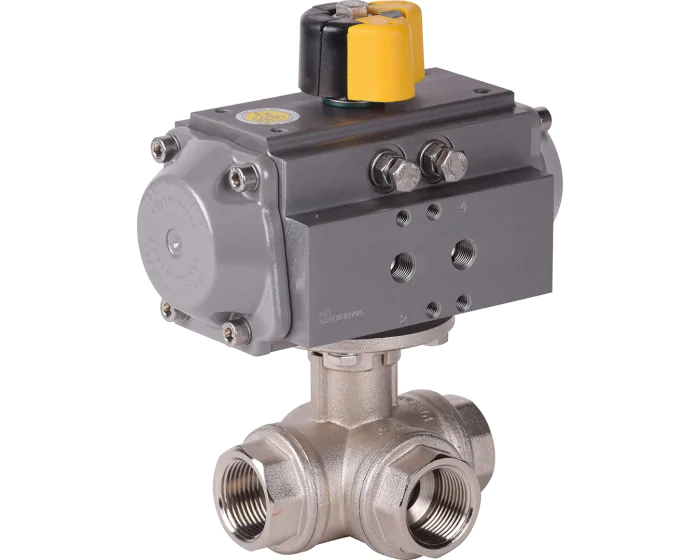

The 513-L/514-T series 3-way ball valve has a brass body and ball and PTFE seats. It is actuated with an ALPHAIR double acting or spring return pneumatic actuator. ACS approved. PS: 16 bar, TS: 100°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Brass 614N |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 76.0 |
| Body material | Brass CW617N |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | FKM |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Brass CW617N |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| 3-way type | L-port |
| Pneumatic actuator type | Double acting |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Reduced Double acting DN8 - 1/4'' L-port | 275010017004R | S1000252 |
€168.63
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Spring return DN8 - 1/4'' L-port | 275010017106R | S1000253 |
€217.04
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Double acting DN10 - 3/8'' L-port | 275011017004R | S1000254 |
€169.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Spring return DN10 - 3/8'' L-port | 275011017106R | S1000255 |
€217.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' Double acting L-port | 275012017004R | S1000256 |
€169.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' Spring return L-port | 275012017106R | S1000257 |
€217.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' Double acting L-port | 275013017006R | S1000258 |
€191.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' Spring return L-port | 275013017107R | S1000259 |
€241.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' Double acting L-port | 275014017006R | S1000260 |
€223.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' Spring return L-port | 275014017108R | S1000261 |
€319.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 Double acting L-port | 275015017007R | S1000262 |
€260.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 Spring return L-port | 275015017108R | S1000263 |
€340.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 Spring return L-port | 275016017108R | S1000264 |
€407.04
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' Double acting L-port | 275017017007R | S1000265 |
€425.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' Spring return L-port | 275017017108R | S1000266 |
€505.53
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Double acting DN8 - 1/4'' T-port | 275030017004R | S1000267 |
€168.63
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Spring return DN8 - 1/4'' T-port | 275030017106R | S1000268 |
€217.04
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Double acting DN10 - 3/8'' T-port | 275031017004R | S1000269 |
€169.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced Spring return DN10 - 3/8'' T-port | 275031017106R | S1000270 |
€217.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' Double acting T-port | 275032017004R | S1000271 |
€169.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN15 - 1/2'' Spring return T-port | 275032017106R | S1000272 |
€217.46
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' Double acting T-port | 275033017006R | S1000273 |
€191.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN20 - 3/4'' Spring return T-port | 275033017107R | S1000274 |
€241.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' Double acting T-port | 275034017006R | S1000275 |
€223.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN25 - 1'' Spring return T-port | 275034017108R | S1000276 |
€319.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 Double acting T-port | 275035017007R | S1000277 |
€260.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN32 - 1''1/4 Spring return T-port | 275035017108R | S1000278 |
€340.29
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 Double acting T-port | 275036017007R | S1000279 |
€326.63
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN40 - 1''1/2 Spring return T-port | 275036017108R | S1000280 |
€407.04
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' Double acting T-port | 275037017007R | S1000281 |
€425.06
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Reduced DN50 - 2'' Spring return T-port | 275037017108R | S1000282 |
€505.53
(excl. btw)
|
add to cart |
